High Precision Hi Target TS 07 GPS RTK GNSS Rover And Base Station 660 Channel RTK GPS

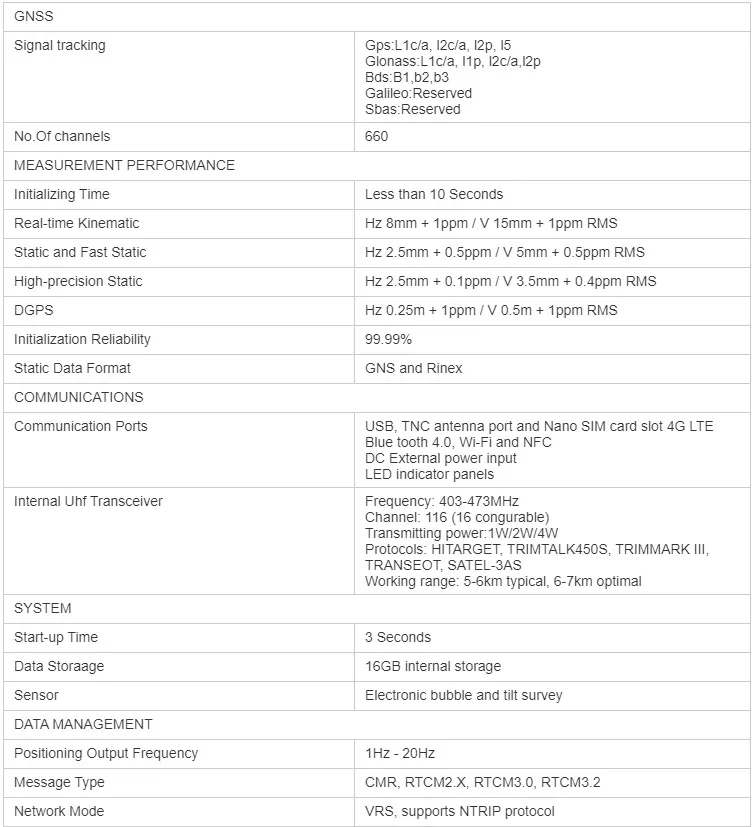

GNSS
Signal tracking
Gps:L1c/a, l2c/a, l2p, l5
Glonass:L1c/a, l1p, l2c/a,l2p
Bds:B1,b2,b3
Galileo:Reserved
Sbas:Reserved
No.Of channels
660
MEASUREMENT PERFORMANCE
Initializing Time
Less than 10 Seconds
Real-time Kinematic
Hz 8mm + 1ppm / V 15mm + 1ppm RMS
Static and Fast Static
Hz 2.5mm + 0.5ppm / V 5mm + 0.5ppm RMS
High-precision Static
Hz 2.5mm + 0.1ppm / V 3.5mm + 0.4ppm RMS
DGPS
Hz 0.25m + 1ppm / V 0.5m + 1ppm RMS
Initialization Reliability
99.99%
Static Data Format
GNS and Rinex
COMMUNICATIONS
Communication Ports
USB, TNC antenna port and Nano SIM card slot 4G LTE
4.0, Wi-Fi and NFC
DC External power input
LED indicator panels
Internal Uhf Transceiver
Frequency: 403-473MHz
Channel: 116 (16 congurable)
Transmitting power:1W/2W/4W
Protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III,
TRANSEOT, SATEL-3AS
Working range: 5-6km typical, 6-7km optimal
SYSTEM
Start-up Time
3 Seconds
Data Storaage
16GB internal storage
Sensor

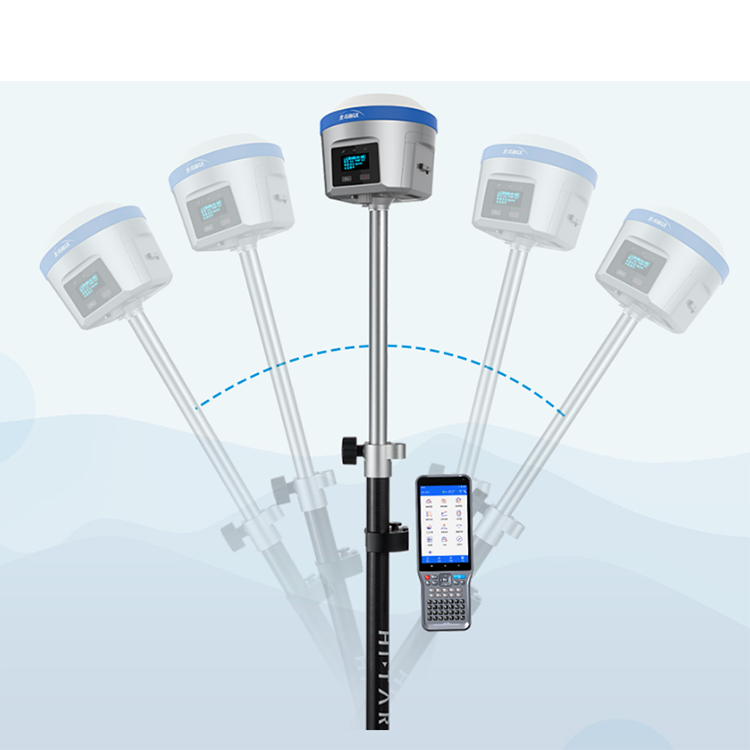

Electronic bubble and tilt survey
DATA MANAGEMENT
Positioning Output Frequency
1Hz – 20Hz
Message Type
CMR, RTCM2.X, RTCM3.0, RTCM3.2
Network Mode
VRS, supports NTRIP protocol
Output Format
ASCII: NMEA-0183, binary data
Application Function
OTG, NFC, WebUI, USB rmware upgrade, network repeater station Intelligent voice, self-test function, smart battery, battery quick
change Message delivery and remote upgrade
GENERAL
Environmental
IP67 environmental protection
Humidity 100% condensing
Shock resistant body to 2m (6.5ft) pole drop
Temperature -40° to 75°C Operating
-55° to 85°C Storage
Physical Properties

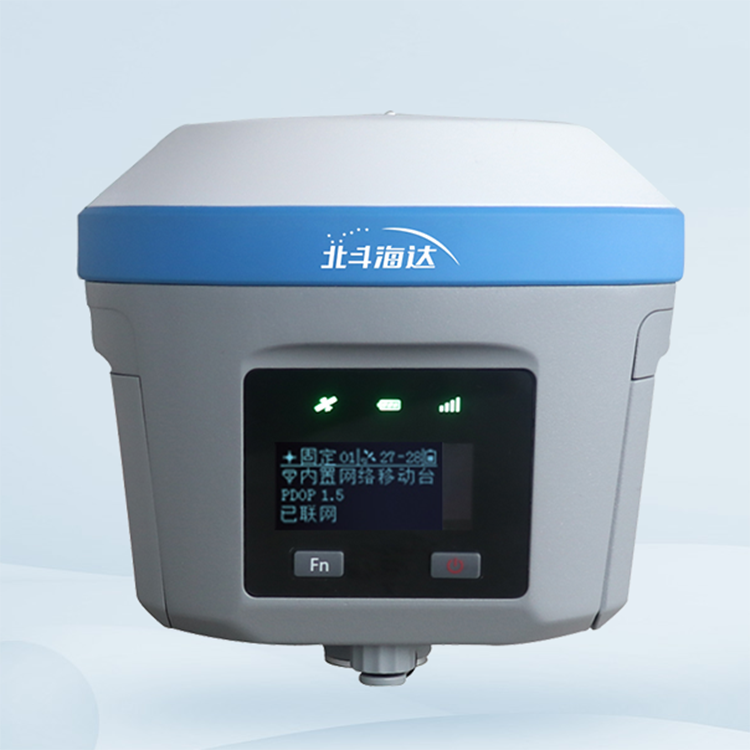

OLED Screen: 1.54in
Resolution: 128 x 64
Size: 137mm x 131mm
Weight: 1.35kg including battery
Power: 6 – 28V DC Input
Battery: 6800 mAh Li-Ion Battery
Battery Life: 10 hours (Network/Cellular – RTK Rover)

High Precision Hi Target TS 07 GPS RTK GNSS Rover And Base Station 660 Channel RTK GPSHigh Precision Hi Target TS 07 GPS RTK GNSS Rover And Base Station 660 Channel RTK GPS
