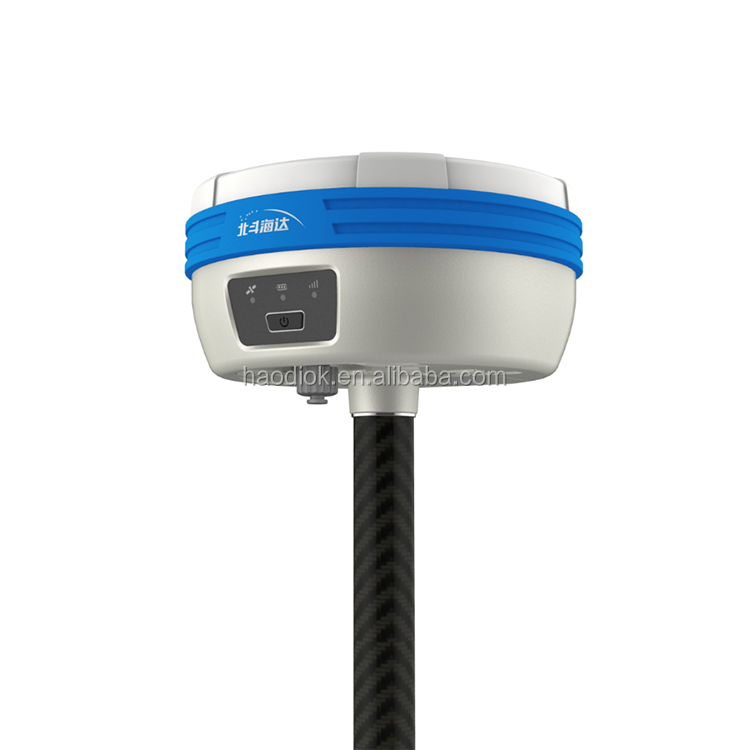

Hi Target TS5 Cheap Gnss Receiver Land Surveying Gps Rtk Measure Instruments

Product Detail

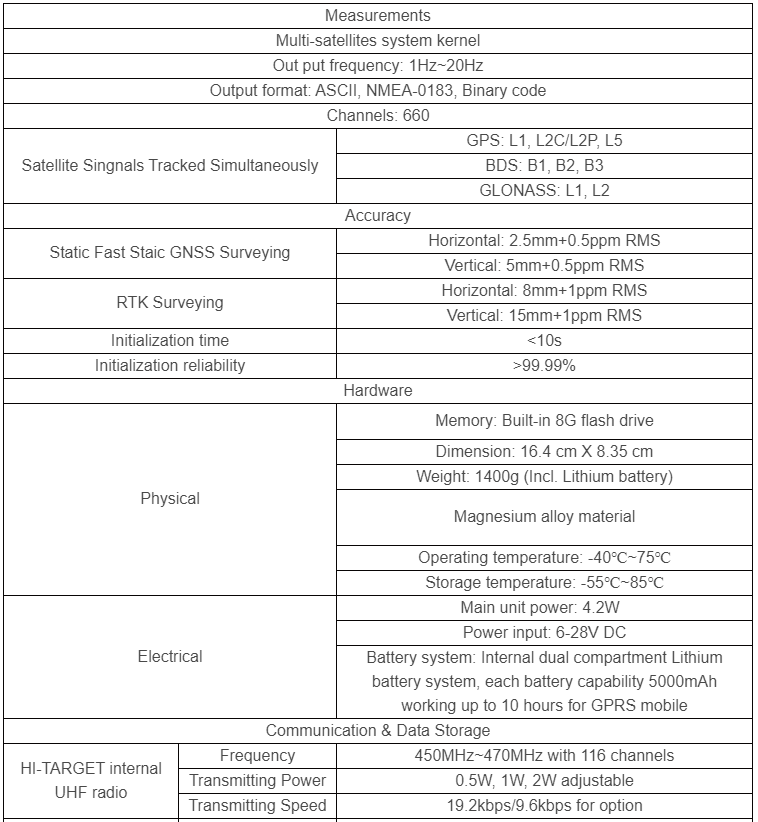

Measurements
Multi-satellites system kernel
Out put frequency: 1Hz~20Hz
Output format: ASCII, NMEA-0183, Binary code
Channels: 660
Satellite Singnals Tracked Simultaneously		GPS: L1, L2C/L2P, L5
		BDS: B1, B2, B3
		GLONASS: L1, L2
Accuracy
Static Fast Staic GNSS Surveying		Horizontal: 2.5mm+0.5ppm RMS
		Vertical: 5mm+0.5ppm RMS
RTK Surveying		Horizontal: 8mm+1ppm RMS
		Vertical: 15mm+1ppm RMS
Initialization time		<10s
Initialization reliability		>99.99%
Hardware
Physical		Memory: Built-in 8G flash drive
			Dimension: 16.4 cm X 8.35 cm
		Weight: 1400g (Incl. Lithium battery)
		Magnesium alloy material
			Operating temperature: -40℃~75℃
			Storage temperature: -55℃~85℃
		Electrical		Main unit power: 4.2W
				Power input: 6-28V DC
				Battery system: Internal dual compartment Lithium battery system, each battery capability 5000mAh working up to 10 hours for GPRS mobile
Communication & Data Storage
HI-TARGET internal UHF radio	Frequency				450MHz~470MHz with 116 channels
	Transmitting Power		0.5W, 1W, 2W adjustable
	Transmitting Speed	19.2kbps/9.6kbps for option
HI-TARGET External UHF radio	Frequency	450MHz~470MHz with 116 channels
	Transmitting Power	5W, 10W, 20W, 30W adjustable
	Transmitting Speed	19.2kbps/9.6kbps for option
Built in 3G network communication		WCDMA/HSDPA/EDGE/GPRS
Double modes communication		NFC connection
Functional self-checking
Voice broadcast working status
