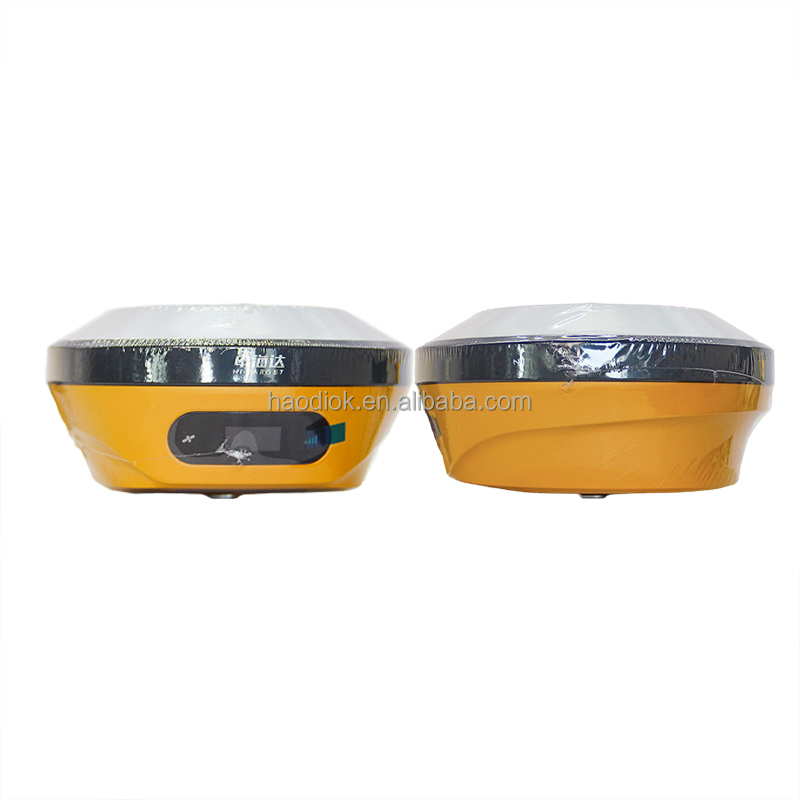

Cheapest Hi-Target V96 Gnss Gps Rtk Receiver With Multi-Protocol Radio
PERFORMANCE SPECIFICATIONS
| Station differential | Support Hi-RTP satellite-based enhancement services (support L-Band) | |
| GNSS configuration | number of channels:660 | |
| BDS:B1,B2,B3 | ||
| GPS:L1C/A,L2C,L2E,L5 | ||
| GLONASS:L1,L2 | ||
| GALILIEO | ||
| SBAS | ||
| output format | ASCII: NMEA-0183,binary code | |
| Locating output frequency | 1Hz~20Hz | |
| Static data format | GNS,Rinex Dual Format Static Data | |
| Difference scheme | CMR,RTCM2.X,RTCM3.0,RTCM3.2 | |
| Network pattern | VRS,FKP,MAC;Support for NTRIP agreements | |
| system configuration | OS | Linux |
| start time | 3s | |
| data storage | Built-in 8 GB ROM, Supports automatic cyclic storage of static data | |
| [1] of accuracy and reliability | RTK positioning accuracy | plane:±(8+1×10-6D)mm (D distance between measured points) |
| altitude:±(15+1×10-6D)mm (D distance between measured points) | ||
| Static positioning accuracy | plane:±(2.5+0.5×10-6D)mm (D distance between measured points) | |
| altitude:±(5+0.5×10-6D)mm (D distance between measured points) | ||
| DGPS positioning accuracy | plane:±0.25m+1ppm ;altitude:±0.50m+1ppm | |
| SBAS positioning accuracy | 0.5m | |
| Initialization time | <10s | |
| Initialization reliability | >99.99% | |
| Communications module | I/O port | USB Type C interface, SMA interface, Nano SIM card slot |
| Cellular mobility | eSIM: built-in eSIM card (including 3 years access fee), no card can be connected, | |
| Built-in 4 G network communications: | ||
| TDD-LTE,FDD-LTE,WCDMA,EDGE,GPRS,GSM | ||
| WiFi communications | 802.11 a/b/g/nAccess point and client mode to provide WiFi hotspot services | |
| bluetooth communication | Bluetooth® 4.2/2.1+EDR,2.4GHz | |
| Built-in radio | Built-in transceiver: | |
| Power :0.5 W/1W/2W Adjustable | ||
| Spectrum :410 MHz~470 MHz | ||
| protocol:HI-TARGET,TRIMTALK450S,TRIMMARKⅢ,TRANSEOT | ||
| Number of channels:116(16 of which are configurable) | ||

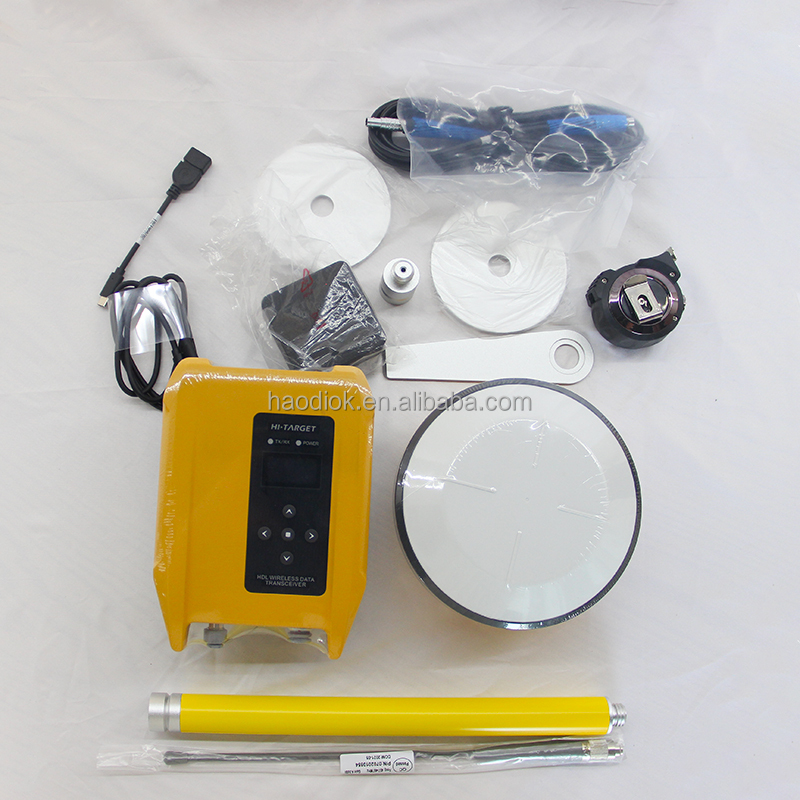

| External Radio | HDL460A Agreement External Radio | |
| Power :10 W\30W adjustable, frequency :403~473 MHz | ||
| Agreement: HI-TARGET,TRIMTALK450S,TRIMMARKⅢ,TRANSEOT,SATEL | ||
| Transmission rate :19.2 kbps/9.6kbps adjustable | ||
| Channels :116(16 of which are configurable) | ||
| Sensor | Electronic bubbles | Realization of Intelligent Pairs |
| Tilt measurement | Built-in high-precision inertial navigation, automatic attitude compensation, no correction, anti-magnetic interference, | |
| point-to-point measurement, accuracy of 3 cm. | ||
| User interface | Press button | Two buttons |
| Display | 0.94 inch 240*120 high-resolution OLED high-definition color display | |
| LED light | Satellite lights, signal lights | |
| Functional applications | Advanced functions | OTG features, NFC flash, WebUI interaction, disk firmware upgrade, network relay |
| Intelligent applications | Intelligent base station, intelligent voice, function self-test, battery fast charge | |
| Remote services | Message push, online upgrade, remote control | |
| Cloud services | Equipment management, location services, collaborative operations, data analysis | |
| Physical characteristics | Host cell | The built-in high capacity lithium battery 6800 mAh/7.4V, network mobile station work 10 hours [2] hours |
| Support for fast charging | Support USB PD3.0 super fast charge, charging time ≤3.5 hours. Support portable battery charging. | |
| External power supply | 6~28 V wide DC design ,5-core interface | |
| Size | Φ156mmx77mm | |
| Weight | ≤1.25 kg( batteries) | |
| Power consumption | 4.2W | |
| Materials | Magnesium alloy material for housing | |
| Environmental characteristics | Dustproof | IP68 |
| Prevent falling | Natural drop of 2 m height measuring rod | |
| Relative humidity | 100% non-condensation | |
| Working temperature | -30℃~+70℃ | |
| Storage temperature | -40℃~+80℃ | |
| Note :[1] measurement accuracy, reliability and initialization time depend on various factors, including satellite number, | ||
| geometric distribution, observation time, atmospheric condition and multipath validity. [2] battery working hours are related to | ||
| working environment, working temperature and battery life. | ||
