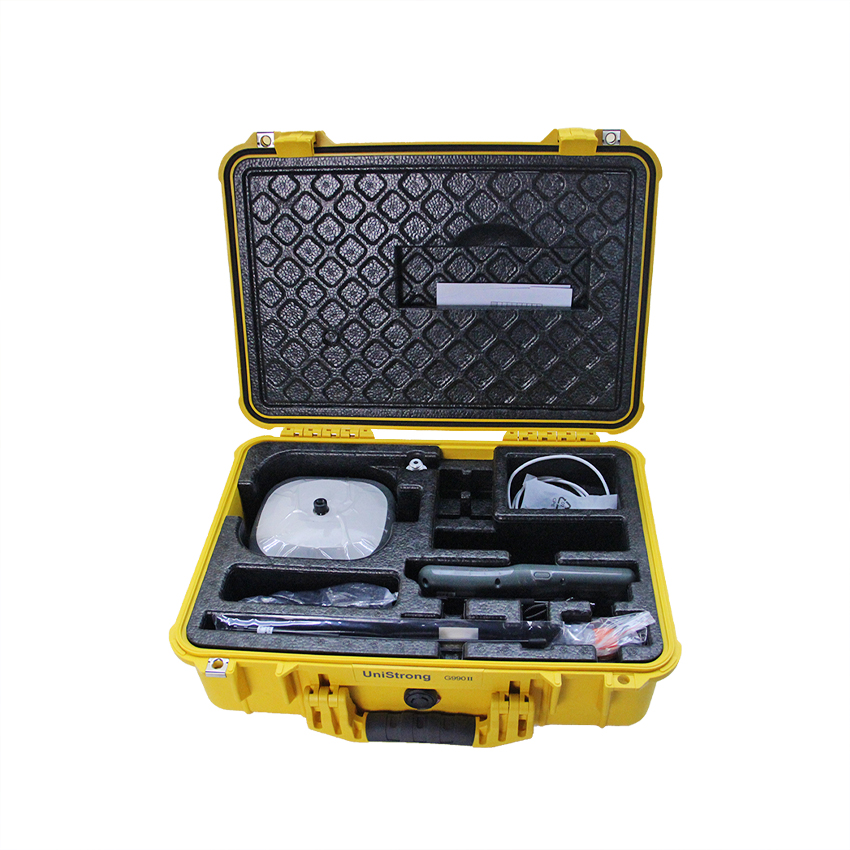

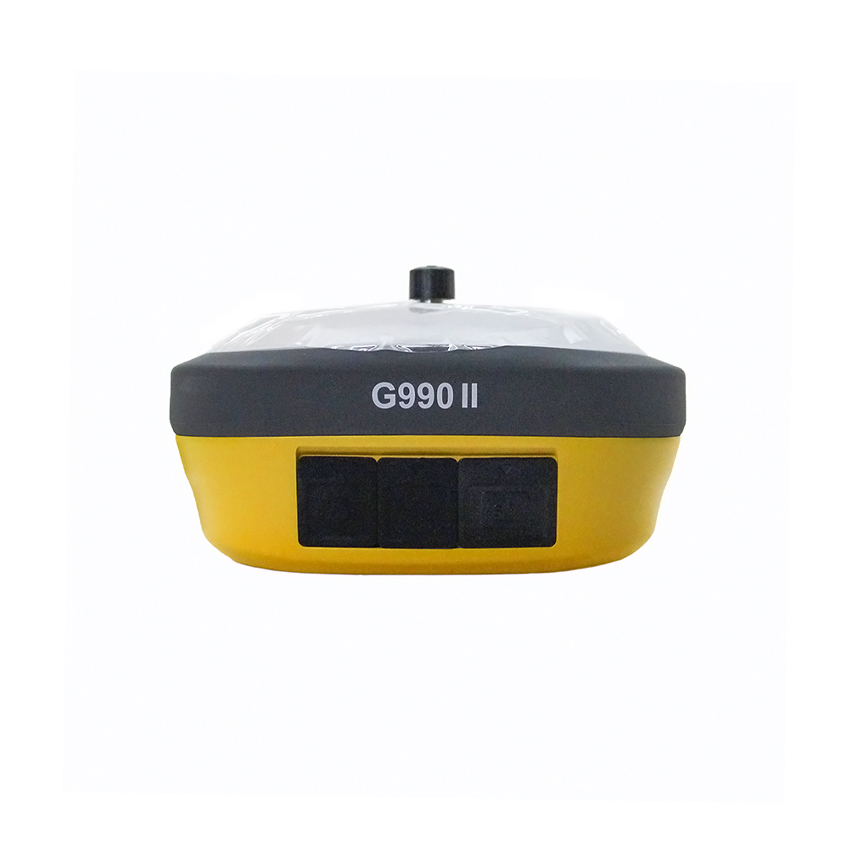

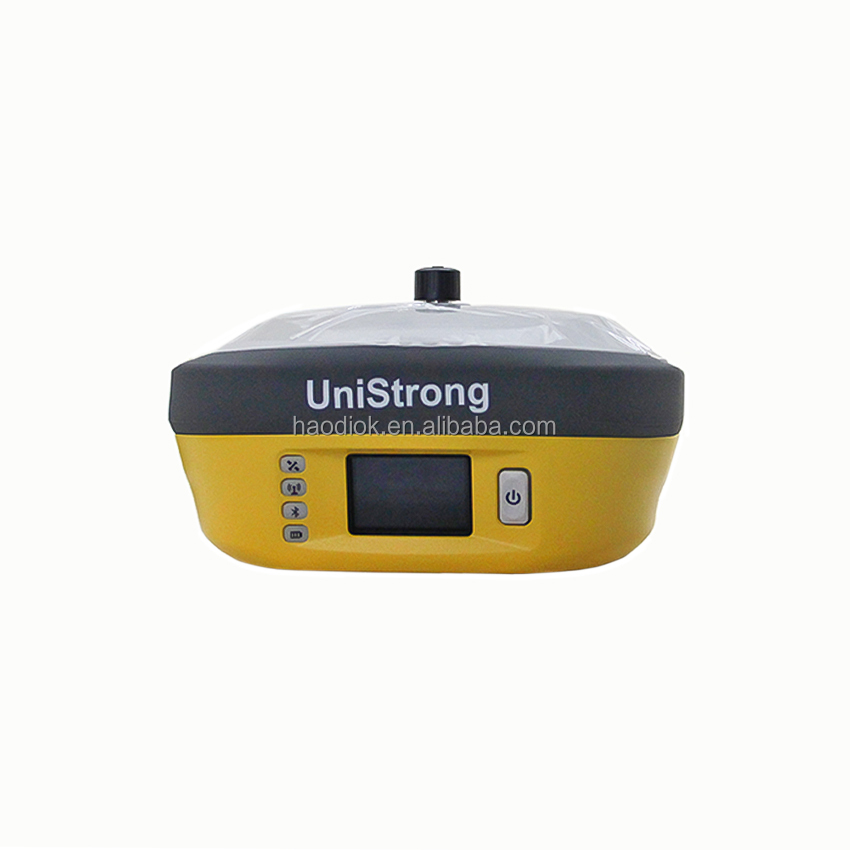

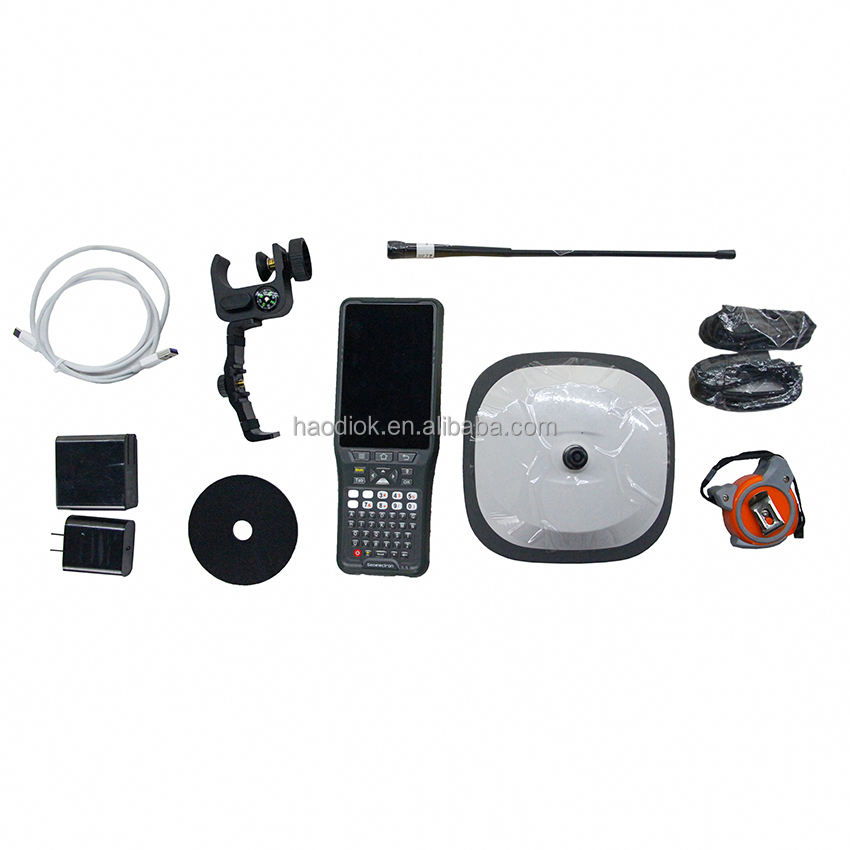

Unistrong G990II Base And Rover Gnss Receiver Gps Survey Equipment

Unistrong G990II Base And Rover Gnss Receiver Gps Survey Equipment Featured Image
  • Unistrong G990II Base And Rover Gnss Receiver Gps Survey Equipment
  • Unistrong G990II Base And Rover Gnss Receiver Gps Survey Equipment
  • Unistrong G990II Base And Rover Gnss Receiver Gps Survey Equipment
  • Unistrong G990II Base And Rover Gnss Receiver Gps Survey Equipment
  • Unistrong G990II Base And Rover Gnss Receiver Gps Survey Equipment
  • Unistrong G990II Base And Rover Gnss Receiver Gps Survey Equipment

Short Description:


Product Detail

Product Tags

Unistrong Base And Rover Cheap Gnss Receiver Price Cheapest Gps Survey Equipment



Unistrong Base And Rover Cheap Gnss Receiver Price Cheapest Gps Survey Equipment

Specification                        G990II GNSS Receiver
Product model G990II specification
GNSS Channels 800 Channels
Satellite Signals GPS: L1 C/A, L2E, L2C, L5 BDS: B1, B2, B3
GLONASS: L1 C/A, L2 C/A, L3 Galileo: E1, E5A, E5B, E5AltBOC, E6
QZSS: L1 C/A, L1 SAIF,L1C, L2C, L5, LEX SBAS: L1 C/A, L5
MSS L-Band: Trimble RTX
IRNSS L5		 GPS: L1C/A,L1C,L1P,L2C,L2P,L5; GLONASS:G1P1,G1OC,G2OC,G2P2,G3OC
BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC; Galileo: E1BC, E5a, E5b, ALTBOC, E6
QZSS: L1C/A, L1C, L2C, L5, LEX; SBAS: L1, L5;
IRNSS: L5;
L-Band
Update Rate 50Hz
Accuracy Static H: (2.5+0.5×10-6D)mm ; V: (5+0.5×10-6D)mm
RTK H: (8+1×10-6D)mm;   V: (15+1×10-6D)mm
IMU Tilt Survey 2cm (@60°Tilt degree)
IMU update rate 400 Hz
Electric Bubble Enable
Power supply Battery capacity Built-in non-replaceable battery, 7.2V/13600mAh, 97.92Wh
Life Timer 12 hours at room temperature
External power
source		 DC 9-28V
System OS Linux 4.1.18
Memory 512MB LPDDR3,32G EMMC
Bluetooth Bluetooth 2.1+EDR /4.0 Dual, (Class 2)
WIFI 802.11 b/g/n
Network LTE FDD: B1/B3/B8/LTE TDD: B38/B39/B40/B41/TDSCDMA: B34/B39 WCDMA: B1/B8/CDMA 1x/EVDO: BC0/GSM: 900/1800
WebUI To manage the status and settings, upgrade firmware, data download
Datalink UHF Radio TRM600, TX&RX, Frequency: 410-470MHz, 7w radio, work range 12KM
Protocol SATEL/ TrimTalk/TRIMMARK3/PCC-GMSK/GEOTALK/TT450S/ HiTarget and etc.
Output format RTCM2.1, 2.3, 3.0, 3.2, 3.3, CMR, CMR+, RTCA
Type-C Port Direct charging, data transmission. Support PD first charge
5Pin Port Used to connect external power and external radio
SIM Card slot Install Nano SIM Card, Side, Flip
Physical Size 154mm Length×154mm Width×76mm Height
Screen 360 x 250 capacitive touch screen, multi-touch
Environment Work Temperature -45℃ ~ +75℃
Storage
Temperature		 -55℃ ~ +85℃
Down Fall Resistance to 2m fall with pole (hardwood ground), 1.2m free fall.
Waterproof
& dustproof		 IP68
Humidity anti-condensation 100%
