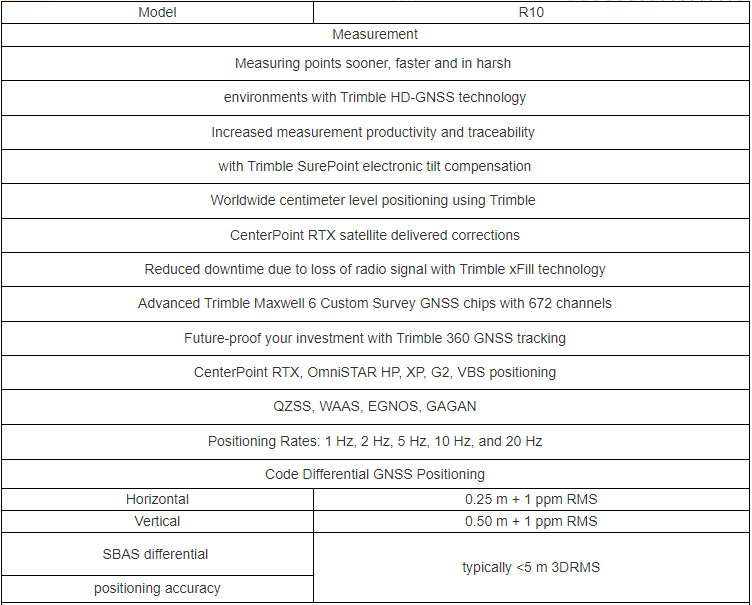

| Model |
R10 |
| Measurement |
| Measuring points sooner, faster and in harsh |
| environments with Trimble HD-GNSS technology |
| Increased measurement productivity and traceability |
| with Trimble SurePoint electronic tilt compensation |
| Worldwide centimeter level positioning using Trimble |
| CenterPoint RTX satellite delivered corrections |
| Reduced downtime due to loss of radio signal with Trimble xFill technology |
| Advanced Trimble Maxwell 6 Custom Survey GNSS chips with 440 channels |
| Future-proof your investment with Trimble 360 GNSS tracking |
| CenterPoint RTX, OmniSTAR HP, XP, G2, VBS positioning |
| QZSS, WAAS, EGNOS, GAGAN |
| Positioning Rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz |
| Code Differential GNSS Positioning |
| Horizontal |
0.25 m + 1 ppm RMS |
| Vertical |
0.50 m + 1 ppm RMS |
| SBAS differential |
typically <5 m 3DRMS |
| positioning accuracy |
| Static GNSS Surveying |
| High-Precision Static |
| Horizontal |
3 mm + 0.1 ppm RMS |
| Vertical |
3.5 mm + 0.4 ppm RMS |
| Static and Fast Static |
| Horizontal |
3 mm + 0.5 ppm RMS |
| Vertical |
5 mm + 0.5 ppm RMS |
| Real Time Kinematic Surveying |
| Single Baseline <30 km |
| Horizontal |
8 mm + 1 ppm RMS |
| Vertical |
15 mm + 1 ppm RMS |
| Network RTK |
| Horizontal |
8 mm + 0.5 ppm RMS |
| Vertical |
15 mm + 0.5 ppm RMS |
| RTK start-up time |
2 to 8 seconds |
| for specified precisions |
| Trimble CenterPoint RTX |
| Horizontal |
4 cm |
| Vertical |
9 cm |
| RTX convergence time |
30 minutes or less |
| for specified precisions |
| RTX QuickStart convergence |
5 minutes or less |
| time for specified precisions |
| Trimble xFill |
| Horizontal |
RTK + 10 mm/minute RMS |
| Vertical |
RTK + 20 mm/minute RMS |
| Physical |
| Dimensions (W * H) |
11.9 cm x 13.6 cm (4.6 in x 5.4 in) |
| Operating temperature |
-40℃ to +65℃ (-40ºF to +149ºF) |
| Storage temperature |
-40℃ to +75℃ (-40ºF to +167ºF) |
| Humidity |
100%, considering |
| Ingress Protection |
IP67 dustproof, protected from temporary |
| immersion to depth of 1m (3.28ft.) |
| Shock and Vibration |
Tested and meets the following environmental standards |
| Vibration |
MIL-STD-810F, FIG.514.5C-1 |
| Electrical |
| Power 11 to 24 V DC external power input with |
| over-voltage protection on Port 1 and Port 2 (7-pin Lemo) |
| Rechargeable, removable 7.4 V, 3.7 Ah Lithium-ion |
| smart battery with LED status indicators |
| Power consumption is 5.1 W in RTK rover mode with internal radio |
| Operating times on internal battery |
| 450 MHz receive only option |
5.5 hours |
| 450 MHz receive/transmit option (0.5 W) |
4.5 hours |
| 450 MHz receive/transmit option (2.0 W) |
3.7 hours |
| Cellular receive option |
5.0 hours |
| Communications and Data Storage |
| Serial: 3-wire serial (7-pin Lemo) |
| USB v2.0: supports data download and high speed communications |
| Radio Modem: fully Integrated, sealed 450 MHz wide band receiver/transmitter |
| with frequency range of 410 MHz to 470 MHz: |
| – Transmit power: 2 W |
| – Range: 3–5 km typical / 10 km optimal |
| Cellular: integrated, 3.5 G modem, HSDPA 7.2 Mbps (download), GPRS multi-slot |
| class 12, EDGE multi-slot class 12, UMTS/HSDPA (WCDMA/FDD) 850/1900/2100MHz, |
| Quad-band EGSM 850/900/1800/1900 MHz, GSM CSD, 3GPP LTE |
| Bluetooth: fully integrated, fully sealed 2.4 GHz communications port |
| WiFi: 802.11 b,g, access point and client |
| mode, WPA/WPA2/WEP64/WEP128 encryption |
| External communication devices for corrections supported |
| on – Serial, USB, Ethernet, and Bluetooth ports |
| Data storage: 4 GB internal memory; over three years of raw |
| observables (approx. 1.4 MB /day), based on recording every |
| 15 seconds from an average of 14 satellites |
| CMR+, CMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1 input and output |
| 24 NMEA outputs, GSOF, RT17 and RT27 outputs |
| Webui |
| Offers simple configuration, operation, status, and data transfer |
| Accessible via WiFi, Serial, USB, and Bluetooth |
| Supported Trimble Controllers |
| Trimble TSC3, Trimble CU, Trimble Tablet Rugged PC |
| Certifications |
| FCC Part 15 (Class B device), 22, 24; |
| R&TTE CE Mark; C-Tick, A-Tick; PTCRB; WFA |
