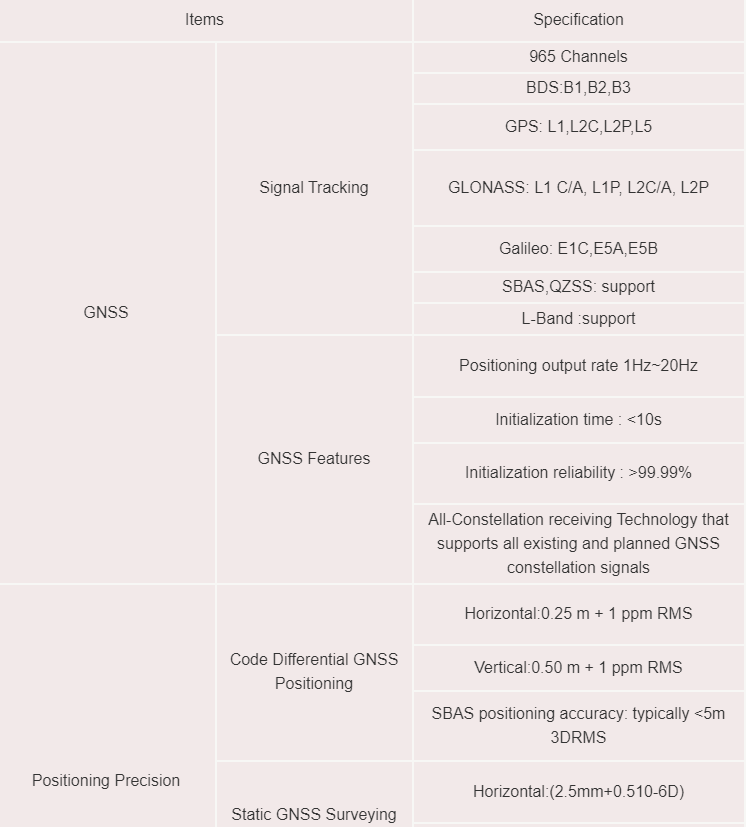

| Items |
Specification |
| GNSS |
Signal Tracking |
965 Channels |
| BDS:B1,B2,B3 |
| GPS: L1,L2C,L2P,L5 |
| GLONASS: L1 C/A, L1P, L2C/A, L2P |
| Galileo: E1C,E5A,E5B |
| SBAS,QZSS: support |
| L-Band :support |
| GNSS Features |
Positioning output rate 1Hz~20Hz |
| Initialization time :<10s |
| Initialization reliability : >99.99% |
| All-Constellation receiving Technology that supports all existing and planned GNSS constellation signals |
| Positioning Precision |
Code Differential GNSS Positioning |
Horizontal:0.25 m + 1 ppm RMS |
| Vertical:0.50 m + 1 ppm RMS |
| SBAS positioning accuracy: typically<5m 3DRMS |
| Static GNSS Surveying |
Horizontal:(2.5mm+0.510-6D) |
| Vertical:(5mm+0.510-6D) |
| RTK Surveying |
Horizontal:(8mm+110-6D) |
| Vertical:(15mm+110-6D) |
| Operating system / user interaction |
Operating system |
Linux |
| buttons |
Single button operation, convenient and quick |
| indicator |
Four indicator lights |
| Web interaction |
Built-in WebUI management background, support WiFi and USB mode access WebUI page, real-time monitoring of receiver status, set any configuration of the receiver. |
| voice |
Intelligent voice technology, support for Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish; support for voice customization |
| Data cloud service |
Support register online, remote upgrade and etc. |
| Electrical |
Power |
9-28V wide voltage DC design with overvoltage protection |
| Battery |
High capacity built-in battery 6800mAh 7.4V |
| Power solution |
Routine operations meet the endurance of more than 8 hours |
| (Provide 7*24h continuous working power solution) |
|
| Communications |
I/O Port |
5 PIN LEMO External power interface +RS232 |
| 7 PIN LEMO with USB(OTG) |
| Radio, Network Antenna Interface (shared) |
| Radio modem |
Built-in high performance radio, |
| operating frequency 410-470MHz, |
| External radio: 5W/25W/35w |
| protocol: TrimTalk450S,TrimMark3,SATEL,HI-TARGET |
| Blue tooth |
BLE blue tooth 4.0;blue tooth 2.1 + EDR standard |
| NFCwireless communication |
Using NFC wireless communication technology, the controller can be automatically paired with the receiver.( controller needs have NFC wireless communication module) |
| WIFI |
standard |
802.11b/g/n |
| WIFI hot spot |
WIFI hot spot function: intelligent terminal can connect to the receiver to do personalization custom; |
| Data transmission supported between the receiver and the controller |
| WIFI data chaining |
Receiver can access WIFI, to broadcast or receive differential data via WIFI |
| Data storage / transmission |
Data storage |
8G solid state memory, supporting 32GB external extension, Automatic cyclic storage, |
| Supporting external USB memory for data storage; |
| transmission |
One key Smart copy directly exports host static data via external USB memory; plug and play USB for data transfer; FTP download, HTTP download. |
| data format |
Static: Rinex2.01, Rinex3.02 and etc. |
| Differential data format: RTCM 2.1,RTCM 2.3,RTCM 3.0,RTCM 3.1,RTCM 3.2 Input and output; |
| GPS output data format: NMEA 0183, PJK plane coordinates, binary code, |
| IMU/Sensor |
Electron bubble |
Built-in sensors, data collector software can display electronic bubbles, real-time check the alignment of the surveying pole leveling situation |
| Shake and shake tilt measurement (optional) |
The built-in IMU sensor supports the tilt measurement function of shaking and shaking, and automatically corrects the coordinates according to the tilt direction and angle of the centering rod. |
| temperature sensor |
Built-in temperature sensor, real-time monitoring and adjusting host temperature |
| Physical |
Size |
135*135*84.75mm |
| Weight |
0.97KG with battery |
| Material |
aluminium magnesium alloy |
| Temperature |
Operating:0 to +65 |
| Storage:0C to +80 C |
| Humidity |
Resistance to 95% condensation |
| Waterproof/ Dustproof |
Waterproof:1m immersion,IP68 |
| Dustproof: Completely prevent dust from entering,IP68 |
| shockproof |
Resistance to 2-meter drop with rod |
