High Performance 800 Channels Stonex GNSS Survey Instruments GPS RTK T1/S1

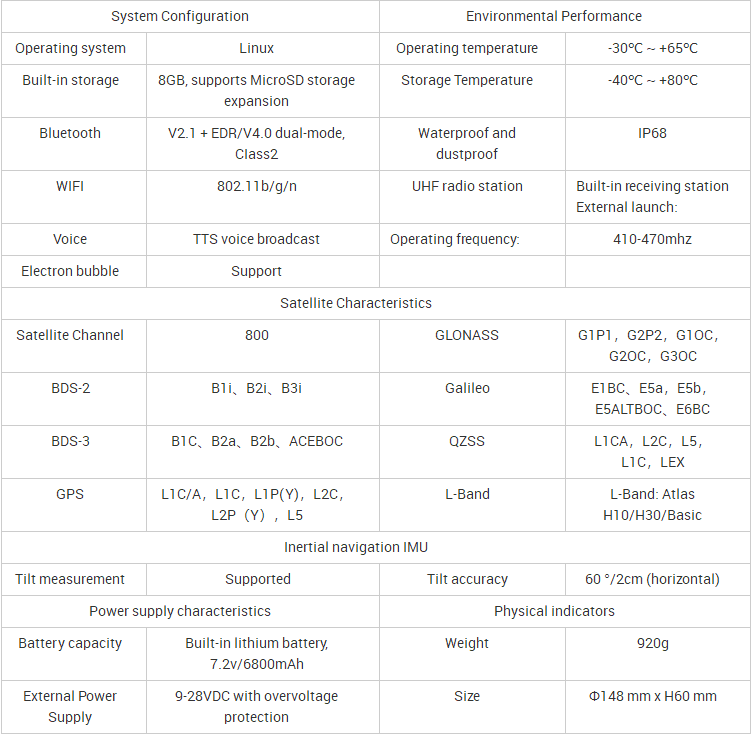

System Configuration
Environmental Performance
Operating system
Linux
Operating temperature
-30℃ ~ +65℃
Built-in storage
8GB, supports MicroSD storage expansion
Storage Temperature
-40℃ ~ +80℃
V2.1 + EDR/V4.0 dual-mode, CIass2
Waterproof and dustproof
IP68
WIFI
802.11b/g/n
UHF radio station
Built-in receiving station
External launch:
Voice
TTS voice broadcast
Operating frequency:
410-470mhz
Electron bubble
Support
Satellite Characteristics
Satellite Channel
800
GLONASS
G1P1,G2P2,G1OC,G2OC,G3OC
BDS-2
B1i,B2i,B3i
Galileo
E1BC,E5a,E5b,E5ALTBOC,E6BC
BDS-3
B1C,B2a,B2b,ACEBOC
QZSS
L1CA,L2C,L5,L1C,LEX
GPS
L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5
L-Band
L-Band: Atlas H10/H30/Basic
Inertial navigation IMU
Tilt measurement
 Supported
Tilt accuracy
60 °/2cm (horizontal)
Power supply characteristics
Physical indicators
Battery capacity
Built-in lithium battery, 7.2v/6800mAh
Weight
920g
External Power Supply
9-28VDC with overvoltage protection
Size
Φ148 mm x H60 mm
