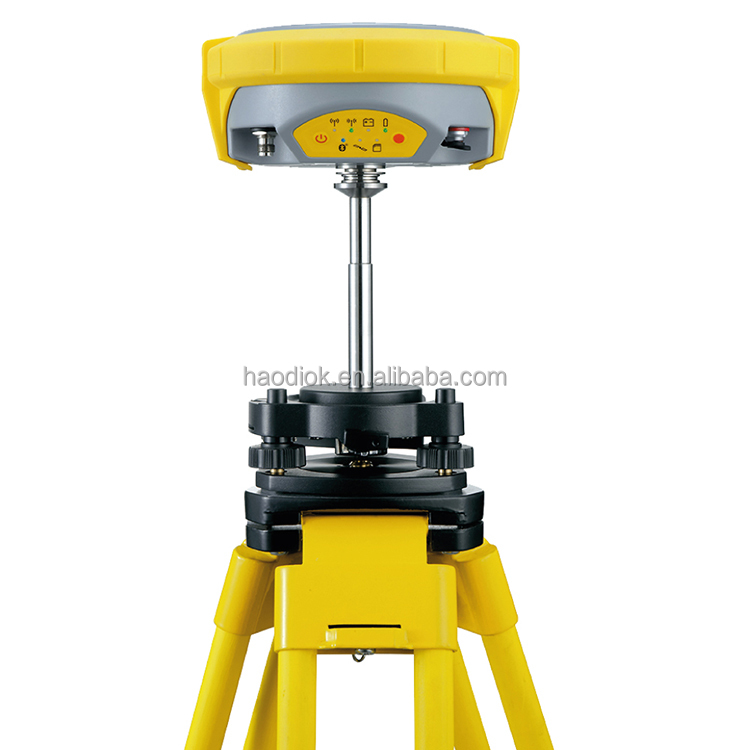

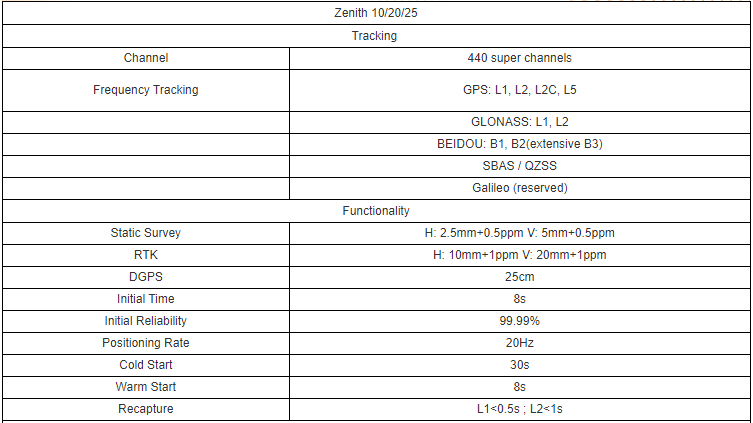

| Zenith 10/20/25 |
| Tracking |
| Channel |
440 super channels |
| Frequency Tracking |
GPS: L1, L2, L2C, L5 |
|
GLONASS: L1, L2 |
|
BEIDOU: B1, B2(extensive B3) |
|
SBAS / QZSS |
|
Galileo (reserved) |
| Functionality |
| Static Survey |
H: 2.5mm+0.5ppm V: 5mm+0.5ppm |
| RTK |
H: 10mm+1ppm V: 20mm+1ppm |
| DGPS |
25cm |
| Initial Time |
8s |
| Initial Reliability |
99.99% |
| Positioning Rate |
20Hz |
| Cold Start |
30s |
| Warm Start |
8s |
| Recapture |
L1<0.5s ; L2<1s |
| Phisical and Power |
| Dimension |
H: 95mm, P:198mm |
| Weight |
1.2kg(including battery and internal radio) |
| Battery |
7.4V rechargable |
| Durance |
12h |
| External Power |
9~18V |
| Buttons |
Power Key, Fuction Keys |
| Display |
7*LED |
| Port |
TNC*1 / LEMO*1 |
| GPS Antenna |
| GPS Antenna |
inner integrated |
| Antenna Type |
Microstrip Antenna |
| Phase Center |
Zero Phase Center |
| Multipath Suppression |
Multipath Suppression Board |
| Storage and Data |
| Internal Memory |
4GB SD Card |
| Differencial Data Output |
RTCM2.X, RTCM3,CMR,CMR+,RTCA,GEOMAXX |
| ASCII Export |
NMEA0183 |
| Output Rate |
20Hz |
| Wireless Communication |
| Blue Tooth |
Class II |
| UHF Radio |
Internal T/Rx Radio |
|
Support Trim Talk, PCC, Satel* |
|
External Radio,5W~35W |
|
Frequency 430~450MHz |
| Network |
GPRS/CDMA*/3.75G* |
| Environment Index |
| Working Temperature |
-45℃ ~ +65℃ |
| Storage Temperature |
-55℃ ~ +85℃ |
| Dust and water |
IP68 |
| Humidity |
100% anti-condensation |
| Drop |
2m |
