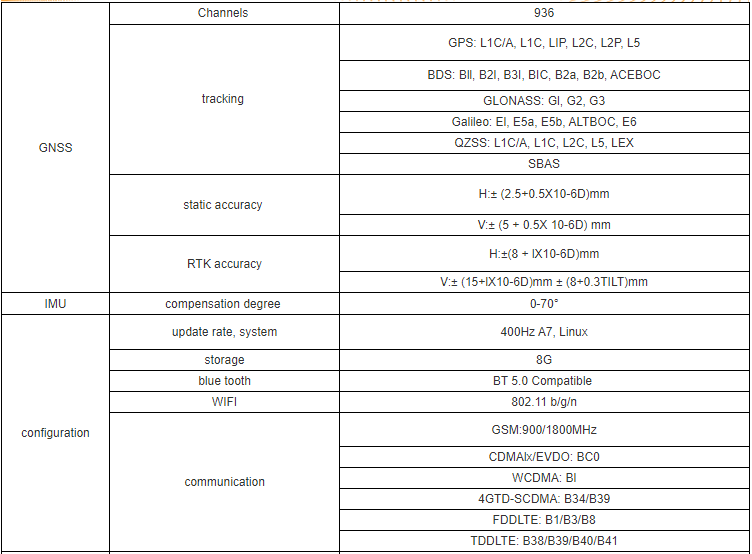

| GNSS |
channels |
936 |
| tracking |
GPS: L1C/A, L1C, LIP, L2C, L2P, L5 |
| BDS: Bll, B2I, B3I, BIC, B2a, B2b, ACEBOC |
| GLONASS: Gl, G2, G3 |
| Galileo: El, E5a, E5b, ALTBOC, E6 |
| QZSS: L1C/A, L1C, L2C, L5, LEX |
| SBAS |
| static accuracy |
H:± (2.5+0.5X10-6D)mm |
| V:± (5 + 0.5X 10-6D) mm |
| RTK accuracy |
H:±(8 + lX10-6D)mm |
| V:± (15+lX10-6D)mm ± (8+0.3TILT)mm |
| IMU |
compensation degree |
0-70° |
| configuration |
update rate, system |
400Hz A7, Linux |
| storage |
8G |
| blue tooth |
BT 5.0 Compatible |
| WIFI |
802.11 b/g/n |
| communication |
GSM:900/1800MHz |
| CDMAlx/EVDO: BC0 |
| WCDMA: Bl |
| 4GTD-SCDMA: B34/B39 |
| FDDLTE: B1/B3/B8 |
| TDDLTE: B38/B39/B40/B41 |
| radio |
Global Communication Protocol |
TRIMTALK, TRIMMARKIII, TRANSEOT(PCC-GMSK), GEOTALK, GEOMARKIII,SATEL, HI-TARGET, HZSZ |
| working mode |
1W transmit-receive |
| TNC |
connect the built-in radio antenna |
| data port |
5 pin port |
connect external power and external radio |
| Type-C port |
For charging and data transfer |
| SIM card |
eSIM |
| physical |
voice |
Intelligent Voice |
| size |
150mm*70mm |
| weight |
896g |
| environmental performance |
working temperature |
-30°C /+70°C |
| storage temperature |
-40°C /+80°C |
| water&dust proof |
IP67 |
| fall down |
Resistant to 2 m fall with rod (hardwood floor), 1.2 m free fall |
| humidity |
100% condensation resistance |
