Specification
| Hardware |
Qualcomm MDM9628 Cortex-A7 |
| Software |
Linux |
| GNSS |
| GPS |
L1,L2,L5 |
| GLONASS |
L1,L2 |
| BDS |
B1,B2,B3 |
| GALILEO |
E1,E5a,E5b |
| QZSS |
L1,L2,L5 |
| SBAS |
L1 |
| Supported data formats |
NMEA-0183 |
| Modification amount of I/O |
RTCM 2.X,RTCM3.X |
| Data update rate |
1Hz(Customized MAX 20Hz) |
| Recapture time |
<1s |
| Cold boot |
<40s |
| Accuracy |
| Point positioning(RMS) |
Horizontal:1.5m ; Vertical:3.0m |
| DGPS(RMS) |
Horizontal:0.4m ; Vertical:0.8m |
| RTK(RMS) |
Horizontal:±(10mm+1ppm) |
| Vertical:±(15mm+1ppm) |
| Time precision(RMS) |
20ns |
| Speed precision(RMS) |
0.03m/s |
| Tilt compensation(Within 30 °) |
<2cm(Tilt function is optional) |
| System |
| Bluetooth |
V2.1+EDR / V4.0 |
| WIFI |
802.11 a/b/g/n/ac |
| Network |
LTE FDD: B1/B3/B5/B8 |
| LTE TDD: B38/B39/B40/B41 |
| TD-SCDMA: B34/B39 |
| CDMA: BC0 |
| WCDMA: B1/B8 |
| GSM: 900/1800MHz |
| Internal Storage |
32GB |

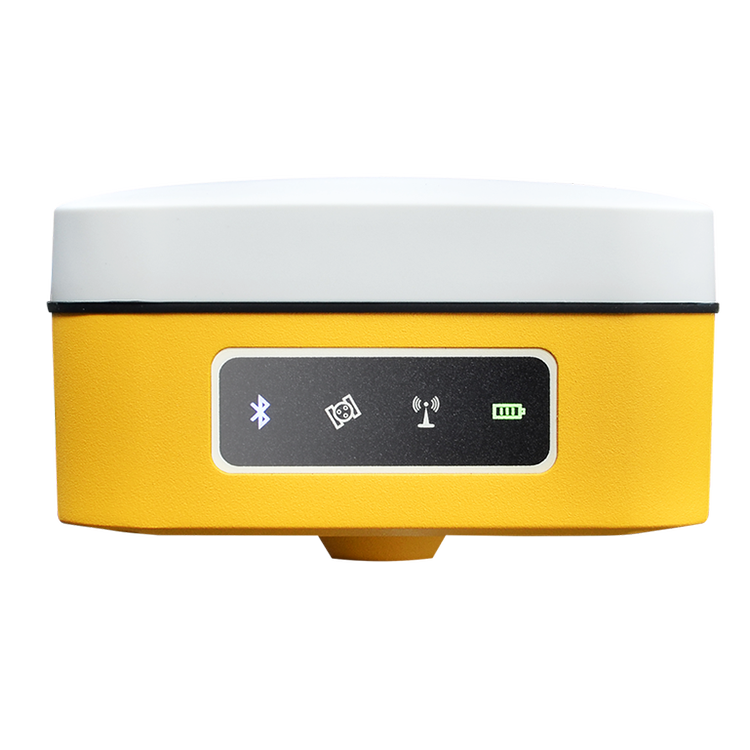

| Light |
| Power lamp |
power supply indicators |
| Satellite lamp |
Blinking indicates active location |
| Bluetooth lamp |
Blue tooth connection stay lights up |
| Data link lamp |
Blink with a difference |
| Battery |
| Specifications |
3.7V,9600mAh |
| Charge |
Support MTK PE+ 1.1/2.0 9V/1.6A |
| Support USB PD 12V/1.25A |
| Support 5V/2A |
| Environment |
| Operation temperature |
‘-20℃~+60℃ |
| Storage temperature |
’-40℃~+85℃ |
| Shock and vibration |
Resistance to 1.5m drop with rod at normal temperature |
| Water / Dustproof |
IP65 |
| Physical |
| Material |
Magnesium alloy casing+ABS/PC |
| Size |
100mm*100mm*61.5mm |
| Weight |
≤0.65kg |
| Accessories |

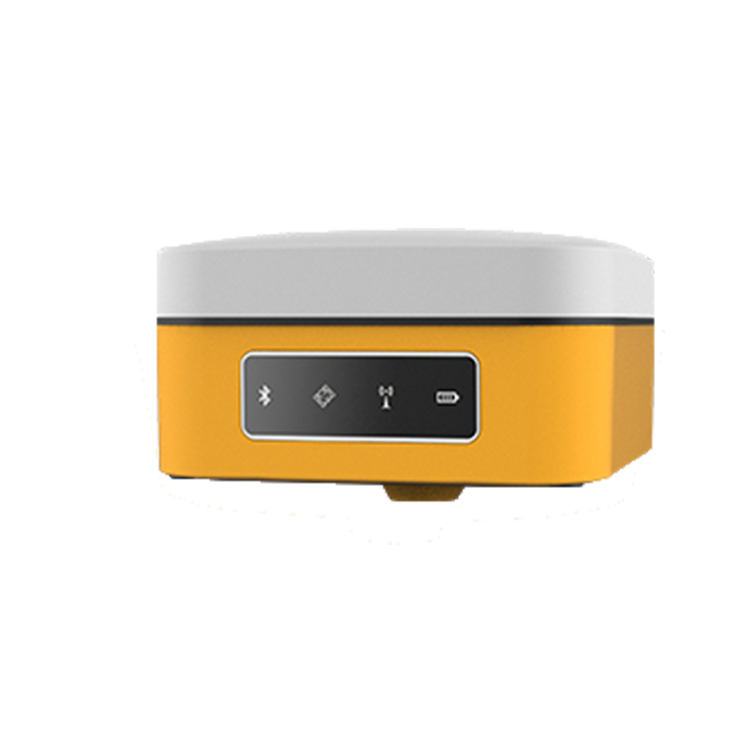

| M68 receiver |
X 1 |
| 5V/2A USB power adapter |
X 1 |
| USB A To Type-C cable |
X 1 |
| Connector |
X 1 |
